The CBI real-time software

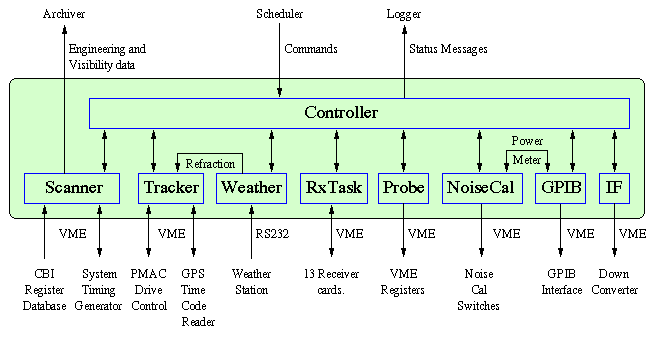

The real-time part of the control system runs under the VxWorks real-time operating system on a MVME177 single board computer. This computer contains a Motorola 68060 processor with 16MB of RAM. The division of responsibilities between separate VxWorks tasks is illustrated below.

The Controller task starts & stops the system and handles TCP/IP traffic.
The Scanner task scans the VMEbus and a local database for data to be archived.
The Tracker task points the telescope and acquires UTC from a GPS receiver.
The Weather task archives weather updates and computes refraction parameters.
The RxTask controls 13 receiver cards.
The Probe task is used for development only. It writes to arbitrary VME registers.
The NoiseCal task controls and monitors the noise calibration system.
The GPIB task controls a GPIB bus used to configure and read instruments.
The IF task controls the power levels and enabling of 13x10 IF inputs.


The Real-Time Controller task.

The real-time controller task is the entry point of the real-time control system. On start-up it pre-allocates the dynamic resources needed by all of the control system tasks. It then enters a loop in which it tries to contact the control program via TCP/IP every few seconds.

When a new connection to the control program has been established, the controller starts up the rest of the tasks in the control system, and passes them the initialized resource objects that it allocated for them. If any of these tasks subsequently reports a fatal error or becomes unresponsive to periodic probes from the controller task, then the controller reboots the control system.

If the connection to the control program is subsequently lost, the controller shuts down the other control-system tasks, re-initializes their resource objects, then goes back to the previously described loop in which it tries to re-contact the control program.

While the control system is active, the main responsibility of the controller task is to act as a communications gateway between the external Sun control program and the real-time control system.

On receiving a network message from the control program, the controller task unpacks the message and forwards its contents to whichever task is responsible for interpretting it. It doesn't wait for a reply.

In the other direction, the control program forwards status messages from control-system tasks to the control program to be logged. To take advantage of this the other tasks report status messages simply by calling a plug-in replacement for fprintf() called lprintf().

The controller also forwards job completion messages from other tasks to the scheduler and astrometry tasks in the control program. These messages are used in the implementation of the acquired() scheduling function.


The Scanner task.

The primary responsibility of the scanner task is to compile snapshots of the CBI registers every time that an interrupt is received from the system timing generator, and then to send the results to the control program for archival and monitoring.

In order to allow for the limited bandwidth of the connection to the control program, and to accomodate the lack of real-time timing guarantees in the control program, the scanner maintains a circular network buffer of up to 100 snapshots. If the system timing generator is configured to interrupt the scanner faster than snapshots can be transfered to the control program, then this circular buffer eventually fills up. If this happens the scanner stops adding frames to the circular buffer until the buffer has completely drained. This tactic guarantees that the control program receives at least 100 contiguous frames between gaps. This is a useful feature for high-speed monitoring.


The Tracker task.

The tracker task has the responsibility of steering the telescope and providing the time reference of the control system. To obtain time, it controls a time-code reader VME card, which in turn gets its time reference from a GPS receiver. To control the telescope drives the tracker task talks to a PMAC motion controller VME board. This contains a motion control program designed by Steve Padin specifically for the CBI drive system. Every second, on the receipt of an interrupt from the time-code reader, the tracker task uses the current telescope model to compute the encoder positions and velocities that the PMAC should attain on the following 1-second tick, and passes these numbers to the PMAC. The PMAC interpolates between these one-second points for each telescope axis to generate a smooth trajectory for the telescope. For this scheme to work, both the PMAC and the tracker task have to synchronize their internal clocks with GPS. To this end the PMAC uses an 8KHz signal generated by the time-code reader as its clock, and at pertinent times the tracker task tells the time-code reader to generate a pulse that will be seen by the PMAC at a prearranged time.


The Weather task.

The weather task receives 30 second updates of weather statistics from an external weather station. This includes the outside temperature, wind-speed, wind-direction, atmospheric pressure, relative humidity and internal weather-station diagnostics. These values are received from the weather station as binary records transmitted over an 8-bit-clean serial line. On receipt the values are recorded in the local database for subsequent archival by the scanner task, and if more than five minutes have passed since the last refraction calculation has been performed, they are used to compute new atmospheric refraction parameters which are then sent to the tracker task.


The Receiver Controller task (RxTask).

The receiver controller task is responsible for the control functions of the 13 receiver cards. This includes controlling heaters, phase-shifter motors and a number of local oscillator stages.

Control of the phase-shifter motors requires special attention. To give schedule writers the option of waiting for the phase-shifter motors to reach their commanded positions, the receiver control task has to monitor the state of the motors and then send a completion message to the control program. The two motor acquisition registers of each of the commanded receivers thus have to be polled at the end of each hardware integration, either until they report successful completion, or the operation times out (after 10 seconds). At this point the completion message is sent to the control program. This is accompanied by an error message if the operation timed out. Receiver cards that have been marked as unreachable by any task, are ignored by the receiver control task. Thus it will continue to function normally in the absence of any of the receiver cards.

If a new phase-shift position is requested while waiting for a previous one, the receiver control task immediately starts on the new one, and stops checking for completion of the previous move.


The NoiseCal Controller task.

Currently the NoiseCal task controls a power meter via the GPIB task. This meter is used to measure the power generated by the noise calibration source that is used to interpolate between absolute source calibration measurements. The power meter is read and zeroed at intervals that are user settable via the noise_cal_interval scheduling command.


The GPIB Controller task.

The GPIB task assumes the responsibility of being the active controller of a GPIB instrument bus, via a VME interface card. Currently the only instrument attached to this bus is the meter that is used to measure the power being generated by the noise-calibration source.

After configuring the GPIB bus, the task accepts requests from other tasks to read messages and write commands to specified GPIB devices. Completion statuses and messages read from GPIB devices are passed back to the requesting task via callback functions. These callbacks generally submit the response on the message queue of the originating task.


Martin Shepherd (26-May-1998)
